DisplayPort is a digital interface that is used to connect computing devices, such as laptops and desktop computers, to displays, such as monitors and televisions. DisplayPort cables are used to transmit audio and video signals between these devices.
With support for high-definition video and audio, DisplayPort provides a reliable and high-quality solution for connecting devices for display and audio purposes. There are various versions of DisplayPort, each offering different features and capabilities.
When choosing a DisplayPort cable, it is important to consider factors such as version compatibility, resolution and refresh rate, length, quality, and price, among others. With the right DisplayPort cable, you can ensure that your devices are connected for optimal performance and quality.
Are DisplayPort Cables all the Same?
All the DisplayPort cables are the same in the sense of their work, meaning all the DisplayPort cables do the same thing, they transfer video and audio signals. But, DisplayPort cables can vary in terms of their specifications. Right from its evolution, there are different versions, and their specifications are different.
Mostly, people look at the resolution and refresh of DisplayPort, so if you’re choosing a DisplayPort cable, then make sure you know the DisplayPort version of your Gprahic card or computer and Monitor to get the utmost experience.
DisplayPort cables are backward and forward compatible, but if you connect a DisplayPort 1.2 cable with your DisplayPort 1.4 Graphics or Computer and DP 1.4 Monitor, you’ll receive the performance of DisplayPort 1.2.
Additionally, different cables may have different versions of the DisplayPort standard, such as DisplayPort 1.1, 1.2, 1.3, and 1.4, each of which offers different capabilities. Choosing the right DisplayPort cable for your needs is important to ensure optimal performance.
#Differences between Various DisplayPort Versions
|DisplayPort 1.1||DisplayPort 1.2||DisplayPort 1.3||DisplayPort 1.4||DisplayPort 2.0|
|Maximum Resolution 1920 x 1200||Maximum Resolution560 x 1600||Maximum Resolution3840x2160||Maximum Resolution7680x4320||Maximum Resolution15360x8460|
|Audio and video transmission||Audio and video transmission||Audio and video transmission||Audio and video transmission||Audio and video transmission|
|Multi-stream transport (MST) for daisy-chaining||Multi-stream transport (MST) for daisy-chaining||Multi-stream transport (MST) for daisy-chaining||Multi-stream transport (MST) for daisy-chaining||Multi-stream transport (MST) for daisy-chaining|
|–||Higher refresh rates||Higher refresh rates||Higher refresh rates||Higher refresh rates|
|Multiple audio and video streams over a single cable||Multiple audio and video streams over a single cable||Multiple audio and video streams over a single cable||Multiple audio and video streams over a single cable||Multiple audio and video streams over a single cable|
|–||–||Increased maximum bandwidth for transmitting data||Increased maximum bandwidth for transmitting data||80 GPBS Bandwith|
|–||–||–||HDR10 standard||Adaptive Sync support|
|–||–||–||8K video transmission||10K|
Choosing the right DisplayPort version based on your needs is important to ensure optimal performance.
#Similarities in DisplayPort Versions
Despite the differences between the various versions of the DisplayPort standard, there are also several similarities between them:
- Digital interface: DisplayPort is a digital interface that transmits data in a digital format. This eliminates the need for analog-to-digital conversion, which can introduce noise and degradation into the signal.
- Multi-functional: DisplayPort supports audio and video signal transmission, making it a multi-functional interface.
- Daisy-chaining: Most versions of DisplayPort support multi-stream transport (MST), which allows for the daisy-chaining of multiple monitors from a single source.
- High-definition: All versions of DisplayPort support high-definition (HD) video and audio signals, providing a high-quality visual and audio experience.
- Ease of use: DisplayPort uses a simple, user-friendly connector that is easy to use and does not require any special tools for installation.
Do All DisplayPort Cables Fit into Devices?
All DisplayPort cables are compatible with each other based on the DisplayPort specification. DisplayPort is an open standard, which means that any device that supports DisplayPort should be able to work with any DisplayPort cable. This is similar to how all HDMI cables are compatible with each other as long as they support the correct HDMI version.
In general, DisplayPort cables that support a newer version of the standard should be backward compatible with devices that support an older version of the standard. For example, a DisplayPort 1.4 cable should be compatible with a device that supports DisplayPort 1.2.
However, the level of compatibility may depend on the specific features and capabilities of the devices and cables involved.
When connecting a device with a newer version of DisplayPort to a device with an older version of DisplayPort, the devices may fall back to the lower version of the standard, which could result in lower bandwidth, lower refresh rates, or other limitations.
For instance, if a device with DisplayPort 1.4 is connected to a device with DisplayPort 1.2, the devices may use DisplayPort 1.2, which could limit the maximum resolution and refresh rate that is available.
To ensure the best performance and compatibility, it is recommended to use DisplayPort cables that match the version of the DisplayPort standard supported by the devices being connected.

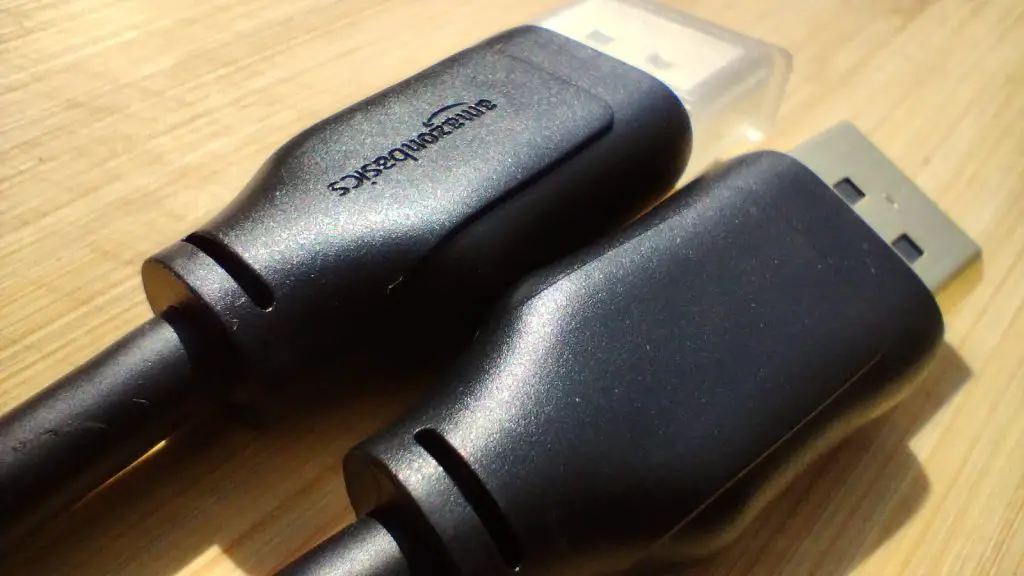

How To Choose the DisplayPort Cables?
- Version compatibility: Make sure that the cable supports the version of DisplayPort that is supported by your device. Check the specifications of both the cable and the device to ensure that they are compatible.
- Resolution and refresh rate: Consider the maximum resolution and refresh rate you want to support. Higher resolutions and refresh rates require higher bandwidth, so make sure that the cable supports the bandwidth needed to transmit the signal.
- Length: Consider the length of the cable needed to reach the device. Longer cables may require a higher bandwidth cable to ensure reliable signal transmission.
- Quality: Look for cables from reputable manufacturers that are made from high-quality materials to ensure reliable signal transmission and long-lasting performance.
- Multi-stream transport (MST): If you plan to daisy-chain multiple monitors, look for a cable that supports MST.
- Audio transmission: If you plan to transmit audio signals, make sure that the cable supports audio transmission.
- Price: Consider the price of the cable, but also keep in mind that a higher-quality cable may be worth the extra cost in the long run.
I have listed more than ten great DisplayPort cables that are certified by VESA and used by thousands of people; you can check that post from here.
